WiiM Ultra

Sleek Design, Superior Build

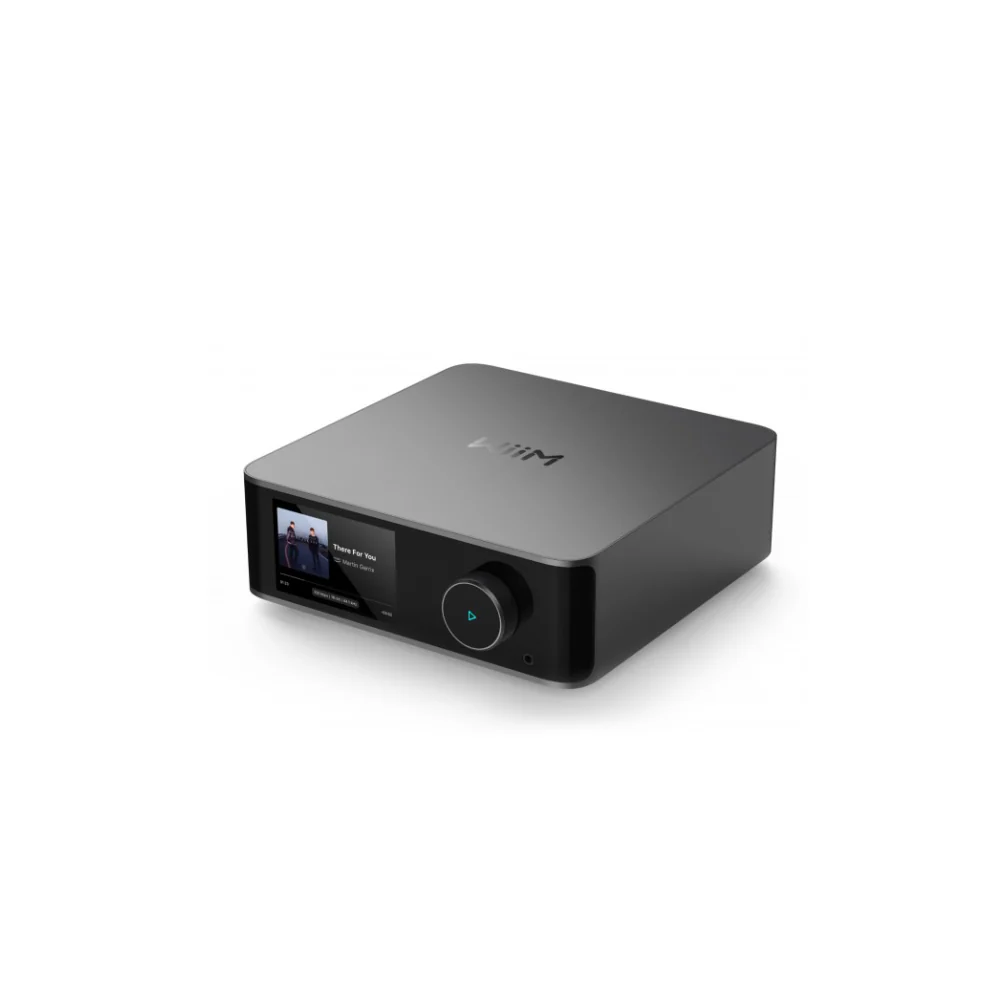

Experience exceptional audio with our sleek aluminum-encased device, featuring a 3.5" glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.

Stream Everything You Love
Streamline your sonic exploration with the WiiM Home app. Say goodbye to app-hopping; this all-in-one interface connects you to a plethora of popular music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz, Napster, Pandora, TuneIn, Deezer, and more.

Superior Sound Quality
Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.

Connect with Ease

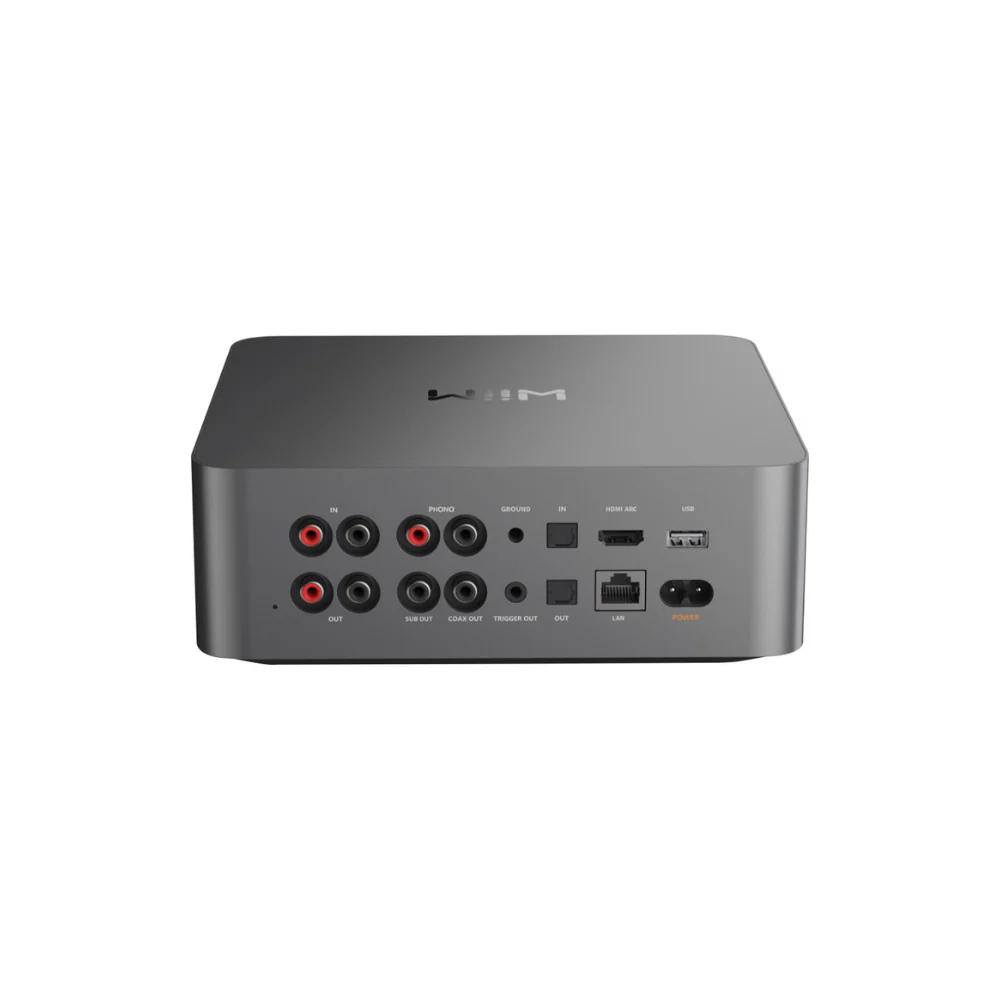

WiiM Ultra’s comprehensive connectivity suite offers USB, Optical, Coaxial, RCA outputs, and HDMI ARC, plus multiple inputs including RCA, Phono, and Optical. It’s designed to flawlessly integrate with both digital and analog systems, enhancing any audio setup with versatility and superior sound.

Cutting-Edge Wireless Tech
Latest Wi-Fi 6E and BT 5.3 with two antennas offering rock solid Bluetooth or Wi-Fi audio streaming.

Your Music Looks Great
Features a 3.5" vibrant touch screen, displaying large album art, VU meter, instant feedback, music playback, and other customizable displays. This makes navigating through inputs, outputs, and settings a smoother and more user-friendly experience, also provides immediate visual feedback to the user's actions.

Seamless Multiroom Audio
Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronize speakers, save your favorite tunes, set alarms, and customize settings, all from one central hub.

Customized Hi-Res Audio
Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space.

Technical Specification

• Main Purpose - Connected to amplifier or powered speaker for streaming
• Pair with a Sub - Yes
• USB Port (Storage/Audio Out) - Yes
• Wireless Connectivity - Wi-Fi 6 (Upgradeable to Wi-Fi 6E via software update)
• Bluetooth - BT 5.3
• Ethernet - Yes
• DAC IC - ESS ES9038 Q2M
• Analog Out SNR - 121 dB
• THD+N (Analog Out) - -116 dB (0.00015%)
• Analog Input (ADC) - Up to 192k, 24 bit
• Google Cast Audio - Yes
• Group with Nest Speakers and Display - Yes
• Group with Echo Speakers and Display - Yes
• Alexa Multi-room with UHD - Yes
• Group with HomePods - No
• Works with Alexa - Yes
• Works with Google - Yes
• Works with Siri - No
• Group with WiiM Devices - Yes
• AirPlay 2 - No
• 2-Way Bluetooth - Yes
• Roon Ready - Yes
• DLNA - Yes
• Spotify Connect & TIDAL Connect - Yes
• Gapless Playback - Yes
• 10-Band Graphic and Parametric EQ - Yes
• WiiM Music Streaming Platform - Yes
• Quad Core A53 - Yes
• DRAM - 512 MB
• Flash - 512 MB
• Audio Input Ports
  HDMI ARC : Up to 192kHz/24-bit.
                      Supports Stereo PCM and Dolby Digital, but not DTS.

  Optical In : Up to 192kHz/24-bit.
                    Supports Stereo PCM and Dolby Digital, but not DTS

  Line In : 2 Vrms
               Analog signal, converted to digital via ADC (up to 192kHz/24-bit)

  Phono In (MM/MC) : Gain: 41dB MM / 59dB MC
                                    MM: THD+N -75dB, SNR 76dB@5mV
                                    MC: THD+N -58dB, SNR [email protected]
                                    RIAA accuracy: < ±0.5dB / 20Hz - 20kHz

  Line Out : Maximum output: 2.1V RMS
                  SNR: 121 dB (A-wt)
                  THD+N (1 kHz): 0.00018% (-115 dB) for 44.1k to 192k
                  FR curve: +/- 0.05 dB

  Optical Out (up to 192 kHz/24-bit)

  COAX Out (up to 192 kHz/24-bit)

  USB Out : Up to 192kHz/24-bit
                  UAC 2.0
                  DC 5V/1.5A power output
  Note: The USB Out port currently does not support Subwoofer
  Output (Sub Out). This feature will be supported through a firmware
  update in the future.

  Sub Out (2.0 Vrms)

  Headphone Out : 300 ohms: SNR (119 dB), THD+N (-99 dB)
                               32 ohms: SNR (119 dB), THD+N (-92 dB)

• 12V Trigger Out : 3.5 mm port
                              Load-carrying capacity: DC 12V/200mA
• LED - Four-color status LED - Red, Green, Blue, and White
• Control - Volume knob, play/pause, setup, and more
• Weight - 3.13 lbs (1.42 kg)
• Dimension - 8.3 in x 7.87 in x 2.83 in (211 mm x 200 mm x 72 mm)
• Power Input - 100-240V AC input, 50/60 Hz, 0.5A Max
